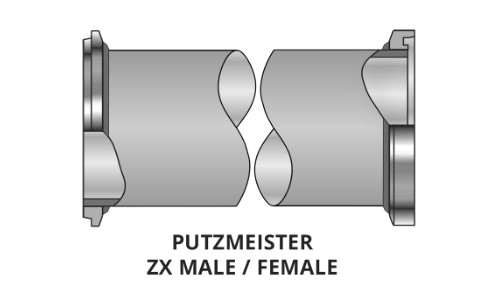

PUTZMEISTER ZX PIPES

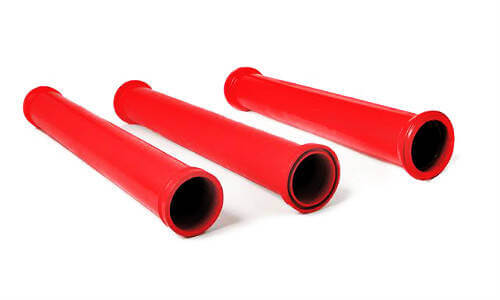

Putzmeister zx placing line for high rise and line pumping applications. 5 inch ID are available in hardened and non-hardened versions.

P1ST ZX 125 – 6.3MM
P1ST ZX 125 – 7.1MM
P1ST ZX 125 – 8.0MM
P1ST ZX 125 – 9.0MM
Part NumberIDLengthDescriptionThicknessFlange
(in/mm)(in/mm)(in/mm)
T6350B20DH5.0 / 125120 / 3048Hardened.248/6.3175Z/X
T6350B25DH5.0 / 125120 / 3048Non-Hardened.248/6.3175Z/X
T7150A20D5.0 / 125120 / 3048Hardened.279/7.1175Z/X
T7150A25D5.0 / 125120 / 3048Non-Hardened.279/7.1175Z/X
T8050A20DH5.0 / 125120 / 3048Hardened.314/8.0175Z/X
T8050A25DH5.0 / 125120 / 3048Non-Hardened.314/8.0175Z/X
T9050A20D5.0 / 125120 / 3048Hardened.354/9.0175Z/X
T9050A25D5.0 / 125120 / 3048Non-Hardened.354/9.0175Z/X
  • Z/X  elbow
  • Z/X Reducers
  • Z/X Couplings
  • O Gaskets

1. Please confirm the flange size before placing the order.
2. Please pay attention to the thickness of the pipe
2. Please tell us the specific purchase quantity
