| Elbow Bend Angles | From 5° to 90° |
| System | 125/5 |
| Wall Thickness | Biased toward high wear areas |
| Hardness | 55 to 58 HRc |
| Max Working Pressure | 85 bar (1233 psi) |
| Pipe Weight | Varies per Degree |
| F.W.C. Weight | Varies per Degree |
| Working Life | Up 30，000m³ |
| Part Number | Degree of Angle | System | Description | Shipping Weight |
| (mm/in) | lbs. / kg. | |||
| 125D11214 | 15 | 125/5 | 9/4 | |
| 125D17421 | 20 | 125/5 | 11/5 | |
| 125D11120 | 30 | 125/5 | 11.5 / 5 | |
| 125D11478 | 32.5 | 125/5 | 18 / 8.2 | |
| 125D11211 | 45 | 125/5 | 18 / 8.2 | |
| 125D08216 | 90 | 125/5 | 34 / 15 | |
| 125D16548 | 90 | 125/5 | Impact Elbow | 34 / 15.4 |
| 125D12468 | 90 | 125/5 | Hevi-Duty Ends | 37 / 16.8 |
| 125D15443 | 90 | 125/5 | Short Rad. / Metric Ends | 27 / 12.2 |

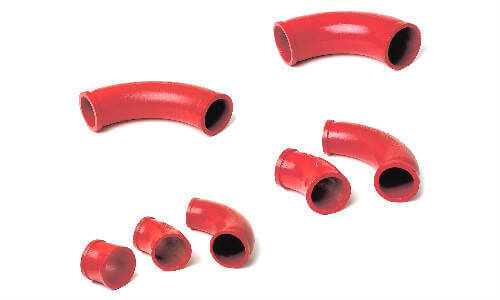

- Casting elbow
- Reducers
- Couplings
- Gaskets
1. Please confirm the flange size before placing the order.
2. Please pay attention to the thickness of the pipe
3. Please tell us the specific purchase quantity
