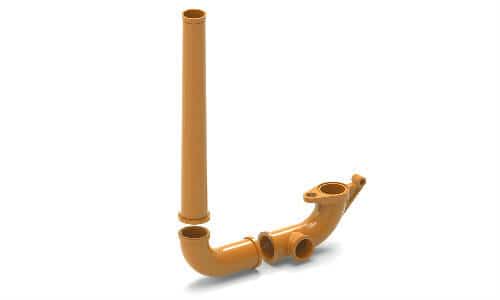

HARDENED CAST STEEL PUTZMEISTER BACKEND KIT
Hardened Cast Steel Backend Kit for Putzmeister, Jun Jin, Concord, Alliance and similar pump trucks. Other reducer lengths, elbow bend angles and end styles are available upon request. Harsh mix configurations are also available, consult factory.
SPECIFICATIONS
| Heat Treated Components | |
| DN125/5 Cast Steel Elbow | |
| DN125/5 Cast Manganese Elbow | |
| DN150/5.75 – DN125/5 Steel Reducer | |
| DN150/6 90° Cast Steel Elbow | |
| DN180/150 Cast Steel Reducing Elbow |
| Part Number | Size | Description |
| mm/in. | ||
| 127P15238 | DN125/5 | 45° Cast Manganese Elbow |
| 127M10491H | DN125/5 | 45° Cast Steel Elbow with tangent |
| 115-11673H | DN150/5.75 – DN125/5 | 47.25″ lg. (1200mm) Steel Reducer with “ZX” End |
| 115-10858H | DN150/5.75 – DN125/5 | 47.25″ lg. (1200mm) Steel Reducer with “SK” End |

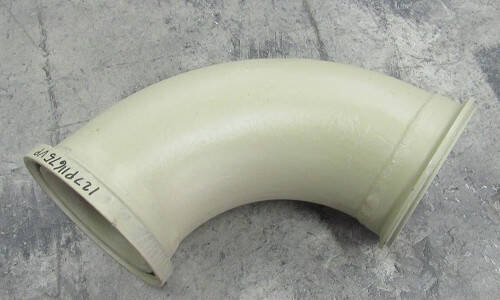

| 127P11675 | DN150/6 | 90° Cast Steel Elbow with “ZX” End |
| 127P11676 | DN150/6 | 90° Cast Steel Elbow with “SK” End |

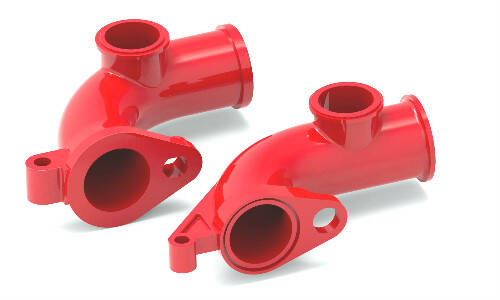

| 215-13646H | DN180/7 – DN150/6 | Cast Steel Reducing Elbow with Grout Port |
| 215-18672 | DN125/5 | Adjustable Ball Stop and Grout Port Cap |
- Single-Wall Boom Pipe
- Single-Wall Deck Pipe
- Cast Manganese Elbows
- Hardened Steel Reducers
- For Couplings consult factory
1. Please confirm the flange size before placing the order.
2. Please pay attention to the thickness of the pipe
2. Please tell us the specific purchase quantity
