Pipes and Elbows with SCHWING couplings

This Connection Type could be different in the geometry of the centering.  We recommend to use our optimised centering, because it has more material underneath the coupling, also the gap between the components is much more smaller. If you have questions to the 5.0” SC V/R connection, call us – we are glad to help you.

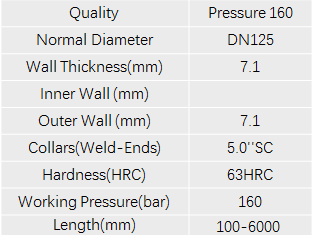

Pressure 160Bar Pipe DN125-5.0” SC

NO.1

Schwing MF PIPE
Pressure 160Bar Elbow DN125-5.0” SC

NO.2

Schwing Bend
